3 To 10 Tons Crude Oil Refinery,Crude Sludge Oil Plant
22 kw for engine oil recycling machine
ISO9001, CE ISO14001 To European refined petroleum products
Oil yeild rate:
35%-70% Crude oil as derived fuel
wood,coal,waste oil to heat reactor
16/18mm Q345R boiler plate
alarm system safety,environmental friendly
tire and rubber diesel,fuel oil into diesel
clean waste tire and city rubbish oil into petro
Engine Oil Recycling Machine
Set/Sets per Year used crude oil refinery machine for lubricating distillation
Packaging & Delivery
40'FR + 40'HQ
25 days after receiving advance payment
Founded in 1993, Xinxiang Huayin Renewable Energy Equipment Co., Ltd is a leading manufacturer of large and small scale waste tire & plastic pyrolysis plants and pyrolysis oil/engine oil distillation plant. These projects convert thousands of kilograms of waste plastic & tire into high quality fuel oil or diesel. Huayin technology is economically viable & environmentally compliant. Huayin Equipment is ISO 9001:2008 certified and CE Certified.
Huayin Energy focuses on equipment manufacturing, project development and turnkey facility operations. Thermal Decomposition Plants manufactured by HUAYIN are efficient at:
1. Solid Waste Management: processing of rubber and used tires, OTR tires, plastic waste and other hydrocarbons; 2. Liquid Waste Management: processing of waste muds, drilling solutions, oil sludge, waste engine oil, motor oil and lubricating oil; 3. Energy Recovery: MSW recycling to energy solution.
Huayin Group offers EPA Friendly and patent-pending system that meets or exceeds most countries’ environmental standards. We are committed to bringing innovative ideas to the marketplace that redefine the way to recycle.

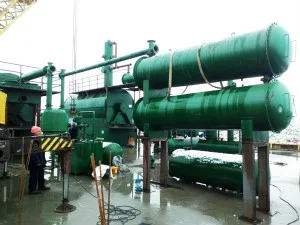

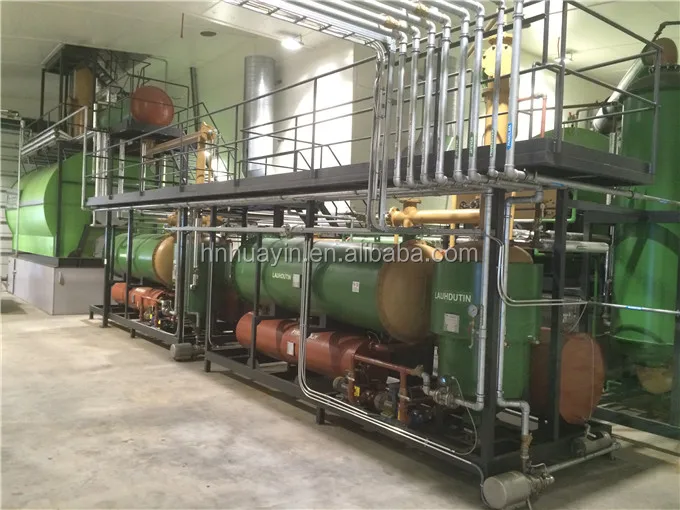

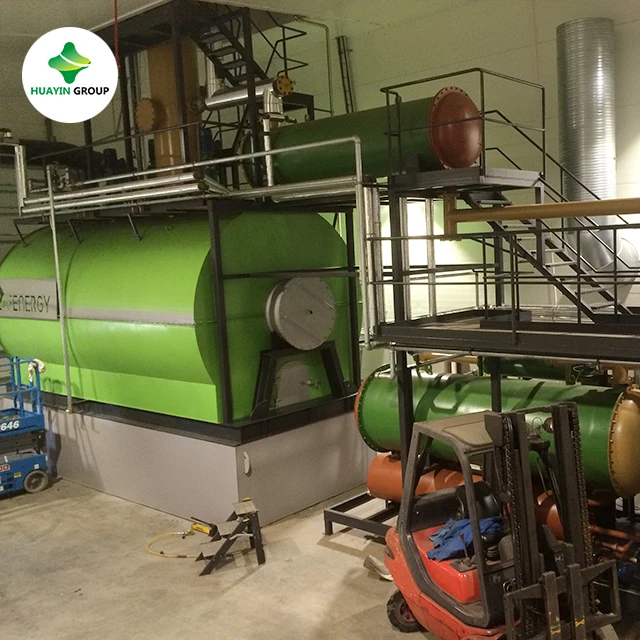

Below is our pyrolysis machine + distillation machine installed in Cyprus
SPECIFICATION OF WASTE OIL DISTILLATION PLANT
3 TON , 5 TON , 10 TON , 30 TON ...
batch type and contnuous type
Avaiable raw material
Pyrolysis oil ,used motor oil , furnace oil , mixed waste oil , hydrulic oil , sludge oil etc.
coal , wood , pyrolysis oil , natural gas
Reactor raw material
Q245R steel plate , Q345R boiler steel plate or customized support

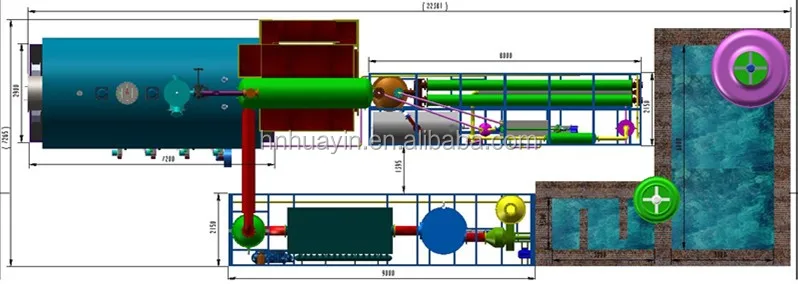

Machine landing area
300-400 square meter (various by different capacity)
2 workers per shift
Output product data
End Production Name
Used for diesel engines like trucks , tractors , ships ,power generators etc.
used for distillation machine as heating fuel
Syngas & impurities
Recycled to distillation furnace as heating material
Main Parts list
The waste oil will be pumped into the reactor for refining.
Atmospheric Fractionator Ensure differrent Fraction come Out.
The oil gas will be cooled to liquid oil then flow to the oil storage tank
Ensure the distillation machine working under normal pressure.
Anti back fire device
Safety device , prevent the oil gas revert to the reactor.
Non condensable oil gas recycling system
The non condensed oil gas (Syngas ) will be recycled to heating system as fuel.
Color and smell removal system
the last step to remove bad smell and color to yellow diesel oil.
3 layers of ceramic packing dedusting to remove dust and acidity, non- pollution.
Auto releasing pressure device , alarm, safety valve , etc to ensure safety operating.
Oil analysis report

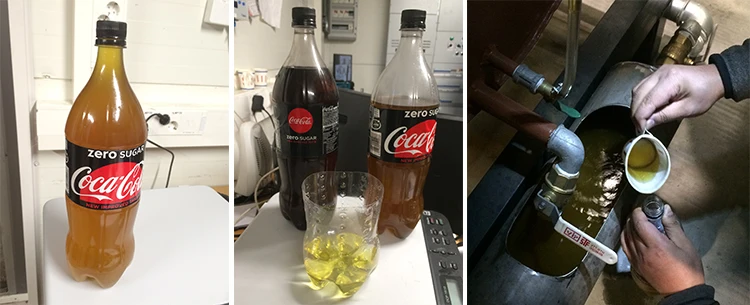

Collecting oil from the distillation machine , The yellow color oil is diesel oil after remove color and smell.

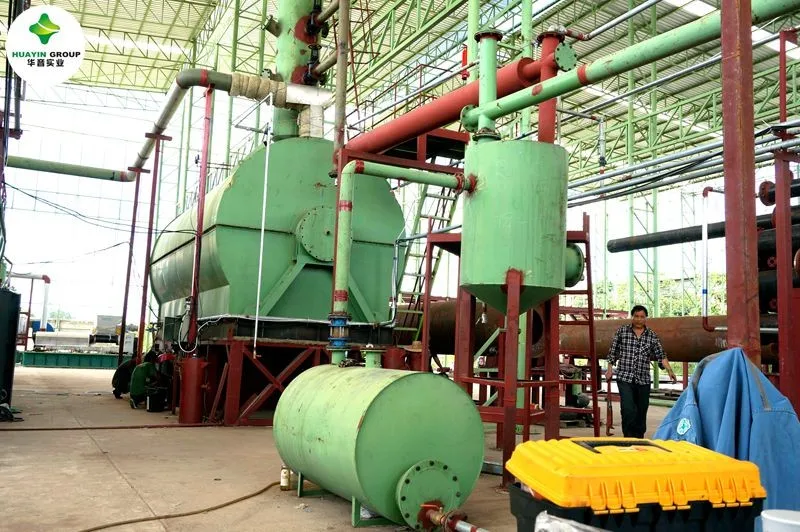

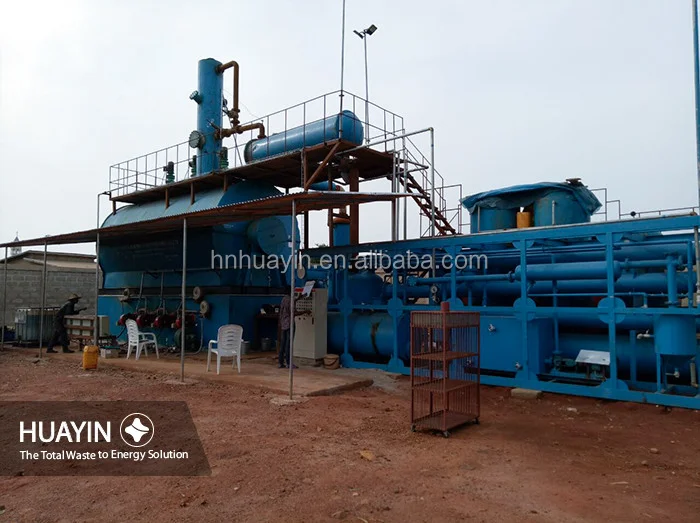

Huayin's plants have been exported to india , Romania , Srilanka , Greece , Poland , Italy , Bulgaria , Chile , South Korea , Finland , Benin , indonesia , Thailand , England ...etc. over 50 countries.
1. All the equipment are certified by CE and ISO 2.Latest integrated design condensing system , 36 meters condensing pipes ,more cooling area, more effective cooling effect, higher oil yield 3.Equipped with safety valves, auto alarming system, anti-explosion valve, which will guarantee 100% safety 4. Flue tube condenser, cool down the exhaust gas from the burner, protect draft fan and improve dedusting effects. 5. Adopts ceramic packing Three-layer dedusting system to clean the exhaust gas to reach European pollution control standards. 6.Automatic submerged welding technology, ultrasonic nondestructive testing, guarantee the equipment quality 7.Oil pump feeding and discharging, save much manpower.
